TYPE EDIT V14
2D Design | Smart Cam | 3D Creation
for CNC Milling
Bringing Manufacturing Tools to Designers and getting unique results.
TYPE EDIT is a complete CAD/CAM software 100% dedicated to the
Graphic Art transformations into industrialized consumer products.
Engrave, Mark, Cut, Carve in 2D, 2.5D and 3D within any materials, on any
CNC milling machines. Deployed for 30+ years Worldwide in renowned
industries as diversified as Die making, Mold Engraving, Signage,
Jewelry, Tooling, Wood working and many more…
With TYPE EDIT, get the Excellence in advanced G-Code generations.
Professionally Tested, Professionally Approved
TYPE EDIT Software, at the crossing of Graphical Arts and the Manufacturing Worlds.
With 400+ powerful features spread within 3 interactive modules, TYPE EDIT is a concentrate of vector edition tools, combined with 3D bas-relief capabilities, the whole connected to a powerful CAM engine proposing multi-machining-strategies. If you are looking for a Complete CAD/CAM solution for engraving texts, building high level detailed polymesh or any artistic composition to run on your CNC, your search has just ended. Discover TypeEdit, the leading Artistic CAD/CAM Software made to enhance the quality and the level of details that other CAD/CAM solutions can’t provide.
Design Projects in either 2D, 2.5D or 3D definitions to run on any CNC.
3 Powerful & Interactive Modules
Fully Scalable and Upgradable. Set your package today.
Upgrade upon your needs.
TYPE EDIT comes with already preset-configurations aiming to fit any type of Business applications.
TYPE CAD is the Computer Aided Drawing module of TYPE EDIT Software. It designs 2D vectors, cleans any imported jobs, trims, improves artworks prior being machined.
TYPE ART is the 3D Computer Aided Drawing module of TYPE EDIT Software aiming to bring the elevation capability to vector in order to build 3D bas reliefs directly from them.

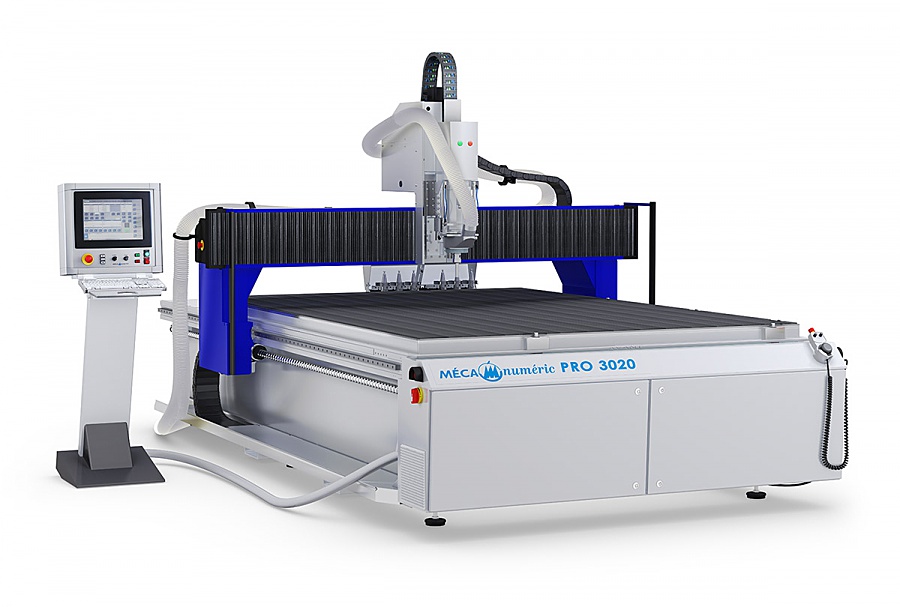

TYPE EDIT can drive any CNC Controller on the market.
Among the 600+ machines available within the master
installation, we can add, customize and tune up post-
processors to fit the needs of any CNC Operators.
Build new logos, type texts or even import Vector lines from other Software,
images, surfaces or Mesh from industry standard formats.
Modify, Alter, Transform, Refine, Customize…
Efficient machining strategies approach with Colors for CAM.
TYPE EDIT gathers many tools adapted for direct type of applications and businesses.
From Graphical Industries to Paper conversion, going through the Engraving and Prototyping applications, TYPE EDIT brings a multitude of Solutions for your growing engraving business.

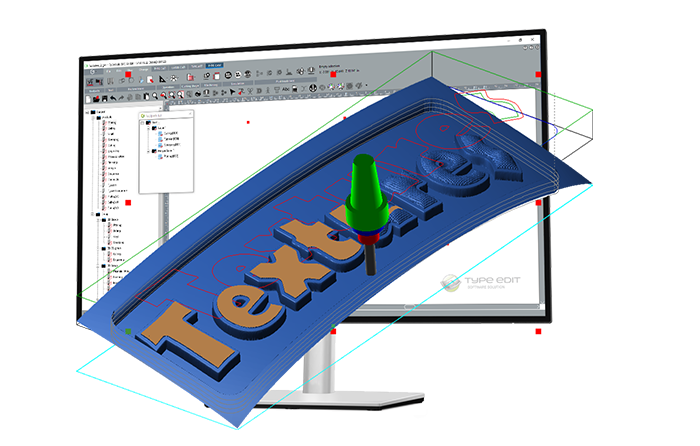

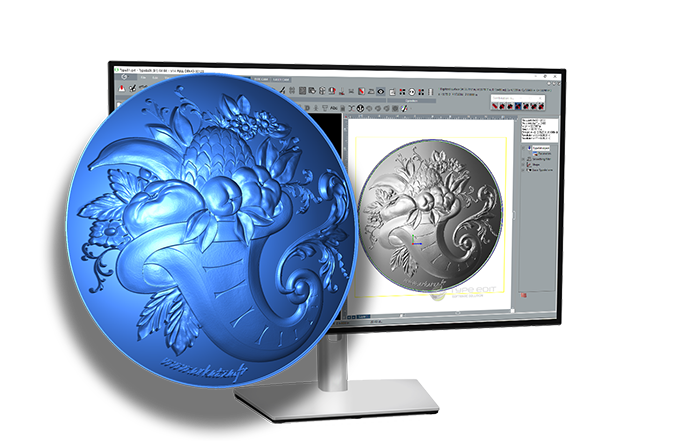

Build 3D Bas Reliefs from Greyscaled pictures,
Sweep curves with any type of profiles for
Advanced Surface Creations. Apply 3D seamless
textures on any shape.
3D Sculpting tools like if you were using real clay.
Customize your tools & assign carousel positions.
Build your strategies through construction tree.
Manage starting positions, lead in/lead out, tabs, Simulations.
Output G-Code, HPGL, DXF, GBR, conversational programs…

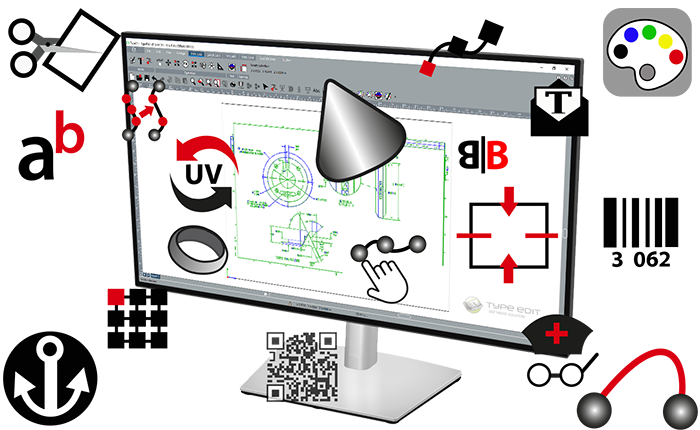

TYPE CAD, the 2D Computer Aided Drawing Module
Hundreds of Professional Features
With its advanced 2D CAD module, TYPE EDIT can design and generate any type of vector line in 2D, but not only as it can elevate in Z the nodes component of those lines and build up 3D objects from them.
Thanks to its powerful node editor TYPE CAD Users are not only drawing flat results in X and Y but also take the Z control of curves that later on a CNC can use to carve and cut within any type of materials.
As user-friendly as Adobe Illustrator© could be, TYPE EDIT builds the fundation and the quality of your artwork up to its production phase. Creations turn into real things.
“I design Jewelry from hands, but when it comes to add my brand or built new designs I’ve a certain level of quality and standards my fingers cannot bring. This was the main reason why I’ve chosen implementing an Engraving solution like TypeEdit and its CAM power. Adding texts or textures is a cup of tea compared to lean long hours each day on my fingers and keep them at the right place. With non-modern CNC the Software has been incredibly improving the quality within my creations.”
TYPE ART, the 3D Computer Aided Design Module
Polymesh Tools, Sculpt in Real Time
Built as an additional environment, TYPE ART is the 3D CAD module developed by TYPE3 SOFTWARE which will transform 2D curves into 3D reliefs.
With its advanced Scuplting module – SCULPT ART – you can also take control of the polymesh and build or rebuild surfaces like if you were sculpting in real clay.
TYPE ART & SCULPT ART offer impressive Artistic tools capable of modelling incredible results, then to machine them accurately.
“I never thought beyond a Graphical Software, and what could be the next dimension for my designs. When I discovered TYPE EDIT. I felt very comfortable with the interface and its creative tools. The level of power in the edition of nodes is just remarkable and as a Graphic Designer I appreciated being able to keep the details until the manufacturing process. TYPE EDIT is probably the only Artistic Software capable of handling such level of accuracy that my customers request.”

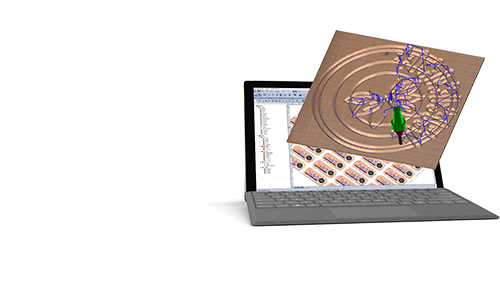

TYPE CAM, Computer Aided Manufacturing Module
Manufacturing Module, Fast & Efficient Toolpath Generations
The CAM module of TypeEdit can drive any type of machines from Milling CNC to large Router and also Lasers. With several strategies of cut, you can lead-in and lead-out your tools as desired, as well as build tabs as needed to hold your parts safely on your machine.
Optimized G-Code for your CNC, such as circular interpolations for perfect motions.
Thanks to powerful post-processing libraries of G-Code but also HPGL and binary codes, TYPE CAM can drive pretty much any CNC on the market. That’s including yours!
“I’ve always hated acquiring new technologies… Artists in my opinion should only used their hands, but nowadays to do a living your own hands are not enough; I’ve learnt the hard way. When I started looking for a computerized solution to help increasing production, I came accross TYPE3 Software and was amazed by the diversity of solutions they were having. TypeEdit was the perfect ade-quation to merge my Artistic skills to a mass production need. Now I see alternatives to my own art.”
“We were looking at implementing an additional solution aiming to engrave and cut our own parts. Most of the CAE packages we were already using could do it but when we need to train new staff to new Manufacturing environments, learning CAD/CAM solutions is often wasted time, due to the processes involved and overall skills of the operators. With TypeEdit and its friendly-user interface, staff never trained before learn quicker handling typical job files. We were really pleased to see this.”
